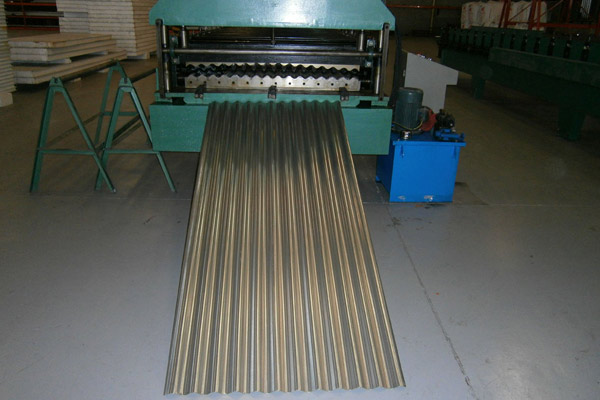

Corrugated Sheet Roll Forming Machine

The metal corrugated roof is widely used for commercial and residential metal buildings, associated with residential and commercial. Corrugated Sheet Roll Forming Machine could be customized designed for its production.

Main Character of Corrugated Sheet Roll Forming Machine

• Simple structure, good appearance since the whole machine is used profiled steel structure and wholly manufacturing after welding, in order to make it running stable and reliable.
• Completely automatic cutting, accurate length, and position trim cutting for the rear of profile sheets, no deformation.
• Easy installation, good performance for manufacturing in the factory.
• Low noise, high efficiency.



Structure of Corrugated Sheet Roll Forming Machine

This corrugated roll forming machine consists of 10 tons automatic decoiler, chain driven transmission, cassette type roller stations, mainframe (including guiding platform), hydraulic cutting device, hydraulic system, electric controlling system and auto stacker.

Working Flow of Corrugated Sheet Roll Forming Machine

Coiler loading → feed-in (sheet metal is put by guiding platform) → roll&forming → hydraulic cutting → auto stacker

Composition of Corrugated Sheet Roll Forming Machine

Roll forming main machine…………………………1 unit
Automatic de coiler………………………………...… 1 unit
Control panel…………………………………………...1 unit
Hydraulic cutting system…………………………...…1 unit
Auto stacker………………………………………......1 unit


Production Line Sketch (For reference)



Quick Detail

We are one of the leading suppliers and manufacturer in China and have been supplying and making roll forming equipment for metal building construction industry for a long time.

We are Specialist in roll forming machines for materials production of building construction, such as for metal roofing and wall, various trapezoidal profiles can be custom manufactured. We build complete roll forming lines for roofing & cladding.

Metal (including steel and aluminum) usage in construction is increasing more than any other building product out there. Steel roofing and steel walls are all manufactured on roll formers. Rollforming is a process by which a flat coil of steel is fed through rolls and formed to make a finished product.

Our roof panel roll forming machines are special for manufacturing high-quality steel roof & wall cladding panels, aluminum Lock Roofs. With our engineer's many times improvements, the Ribbed Roof Panels machine design is perfect.

It is specially designed forming roofing corrugated sheet, wall panel, floor deck, under mass-production. The highest speed of the line can reach to 30 M/min working with fully automatically stacking system.

More information about steel roof panel profiles, Please contact us!
