Hot Roll Steel Slittig Line

  • hot-roll-steel-slittig-line-1.jpg
  • hot-roll-steel-slittig-line-2.jpg
  • hot-roll-steel-slittig-line-3.jpg
  • hot-roll-steel-slittig-line-4.jpg
Contact Now

SALIENT FEATURES

Quick Details of Hot Roll Steel Slittig Line

Max weight:

15T

Tolerance:

0.02mm

Working life:

30 years

Guarantee:

1 year

Produced material:

Aluminium, Steel, Cooper

Thickness:

0.3-3.0mm

Max width:

1500mm

Speed:

0--100mm/min

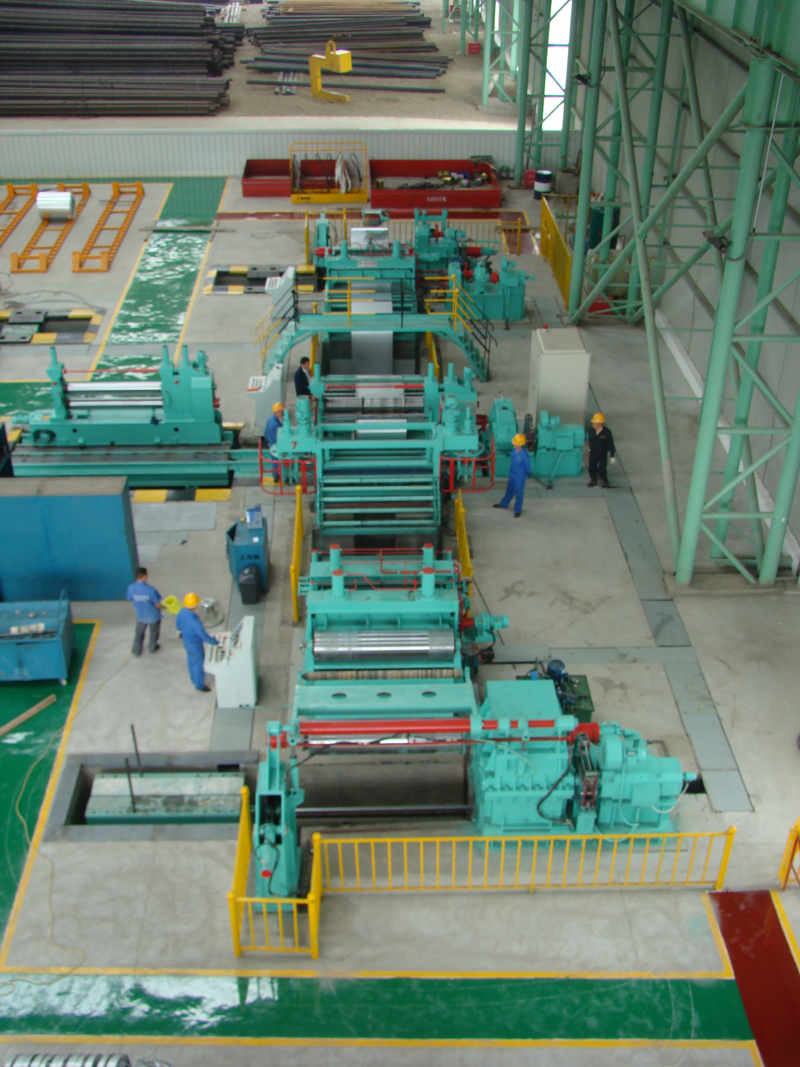

FlowChart of Hot Roll Steel Slittig Line

Hot Roll Steel Slittig Line1
Hot Roll Steel Slittig Line2
Hot Roll Steel Slittig Line3

Machine Parts in the Steel Automatic Slitting Machine

  • Coil car
  • Decoiler
  • Peeler entry table
  • Straightener.
  • Shearing machine
  • Loop table
  • Coil guide and pinch roll
  • Slitting machine
  • Scrap winder (both sides)
  • Loop table
  • Separator and tension table
  • Deflector roll and exit threading table
  • Recoiler
  • The overarm separator in the recoiler.
  • Exit coil car for recoiler
  • Hydraulic system
  • Pneumatic system
  • Electrical control system

TECHNICAL PARAMETERS

Fabric Slitting Machine Manufacturer SS Steel Coil Cutting Machine

Type

RB-650

Material Thickness Range to be Slit

0.3--3.0mm

Width Thickness Range to be Slit

200--600mm

Inner Diameter of Feeding

460--520mm

Inner Diameter of Discharge

480--508mm

Max Outside Diameter

1500mm

Weight

15T

Cutting Speed

0--100m/min

Horizontal Beat

±0.02mm

Vertical Beat


±0.02mm
