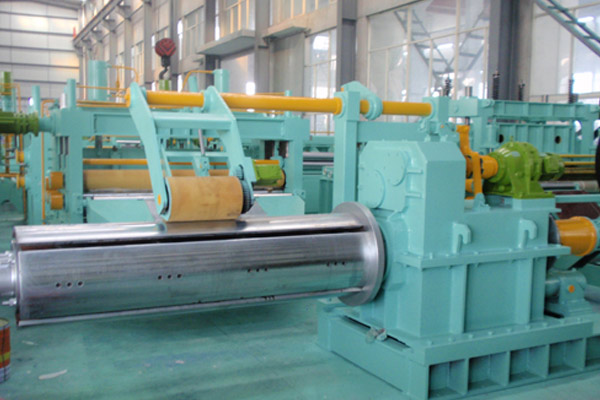

Cut To Length Line

  • cut-to-length-line-cr-1.jpg
  • cut-to-length-line-cr-2.jpg
  • cut-to-length-line-cr-3.jpg
  • cut-to-length-line-cr-4.jpg
Contact Now

SALIENT FEATURES

TECHNOLOGICAL PROCESS & PARAMETER of Cut To Length Line

ITEM

PARAMETER

Specifications

Material

carbon steel plate

Thickness

2mm—8mm

Width

800mm—2000mm

Coil plate I.D.

Φ500mm—φ800mm

Coil plate E.D.

φ1000mm—φ2100mm

Max. weight

25T

Finish product’s specification

Gauge length for cutting

2000mm—12000mm

Cutting presicion:

Length tolerance

Diagonal tolerance

Others

±1.5mm/2m

±2.0mm/2m

in accordance with GB/T709-88 stipulation

Leveling speed(by 8m plate)

0—80m/min

Max thickness

8mm

Line elevation

800mm

TECHNICAL PARAMETERS

Detailed Specification of Cut To Length Line

1. Hydraulic decoiler
Its capacity is 25T, discharging steel coil, vertical and horizontal movement driven by pistons, so that guide steel coil could be into de-coiler tension roll.

2. Guiding device
Composed by: extension feeding plate, pressing roller.
Function: Assist to feed steel into straightening machine smoothly.

3. Straighten unit
Steel structure: machine base, housing. A couple of straightening rollers, upper roller wrapped with PU, three pcs of leveling rollers
Function: straighten steel sheet. Straighten rollers can be lifted. A clearance between leveling rollers up and down can be adjusted by hand wheel, to suit for different material thickness.

4. Cutting machine
Composed by machine stand, knife rack, guide track, oil pump, and knifes.
Function: due to cutting or special situation, to ensure the steel enter into next process in order.

5. Stacker
Composed by machine stand, support base, big diameter steel roller.

6. Electrical system
Composed by stand electrical cabinet, PLC program installed, touch screen etc.
Function: to control the whole production line.
