Gutter Roll Forming Machine

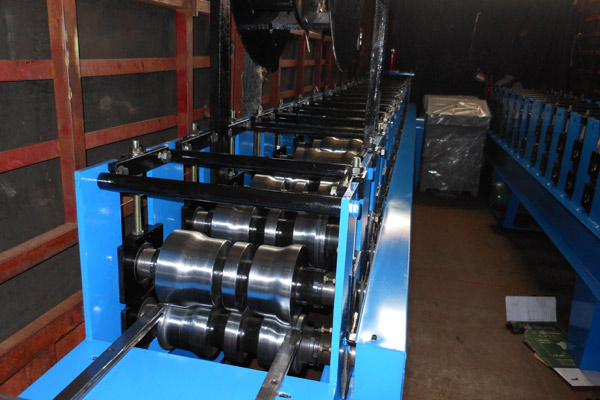

  • gutter-roll-forming-machine-3.jpg
  • gutter-roll-forming-machine-4.jpg
  • gutter-roll-forming-machine-8.jpg
  • gutter-roll-forming-machine-9.jpg
Contact Now

SALIENT FEATURES

Quick Detail of Gutter Roll Forming Machine:

The Roll forming machine can manufacture various kinds of gutters profile to satisfy customers' required. Produced gutters are in fashionable outline and high superiority. Gutters are so mostly used in our daily life, so this machine will surely bring you a lot of profitable benefits to you.

Description of Gutter Roll Forming Machine:

• Polyurethane Drive Rollers
• Stainless Steel Forming Rollers
• Push Button RUN/JOG Controls at Entry and Exit Ends
• Forward Pulling, Easy Cut Shear
• Power Interruption Safety Circuit
• Two 360º Rotatable Reel Stands with Easy Lift Reels
• Welded Tubular Steel Frame

Applications of Gutter Roll Forming Machine:

Our mission is to provide excellent custom gutter machines and tools for professional gutter installation and quality product at competitive prices, such as K-STYLE Gutter and Half Round gutter forming machines for Residential Gutter Machines and Commercial Gutter Machines with our patent design technology.

Half round Gutters are attached to the roof edges and used to draw water down and away from the house and its foundation. Most gutters consist of sections of gutter, drop outlets and downspouts. Gutters can be constructed out of aluminum, copper, galvalume, galvanized steel, copper penny aluminum, freedom gray copper, weathered zinc, copper plus, designer copper aluminum, lead coated copper, paint grip steel.

We have the gutter machines for various needs: K-style, Half-round, and Box, offers a wide selection of gutter machines and machines to cover both the residential and commercial industries. The custom gutter machine is according your requirement, gutter samples or drawings.

Gutter Roll Forming Machine1

The new patented technical solution has allowed the remarkable reduction of the machine overall dimensions while guaranteeing top quality products in all materials (copper, zinc-titanium, pre-painted metal, zinc, aluminum, etc.)We design an innovative range of gutter machines for the production of half round gutters with traditional profiles and width 280, 333 and 400 mm.

Technique parameters of the processing line

  • Suitable material: Colored armor plate
  • Thickness of the plate: 0.3-0.8mm
  • Input width of the plate: Both decks is 1000mm
  • Productivity: 12m/min
  • Roller steps: 11 rows
  • Roller material: 45# steel
  • Diameter of active shaft: 70mm
  • Wall thickness of the main forming machine: 12mm steel plate (final design depends on your final profile
  • Main forming machine body: 300mmH steel
  • Transmission chain is25.4mm, Reducer is 5.5kw Xingxing Cycloid which works stably and no noise.
  • Cutting hydraulic system adapts CDF- 10 gear pump, the motor power is 4kw, no noise, work stably,
  • PLC control system, easy to operate, high precision and work stably.
  • Dimensions of major structure: 3800mm*600mm*1500mm

Components of Line:
No. Name Unit Qty
  • Decoiler set 1
  • Main machine for roll forming set 1
  • Control system set 1
  • Hydraulic system set 1
  • Post cut set 1
  • Output table set 2

Technical Specification of Gutter Roll Forming Machine
  • Manual decoiler
    Un-powered; Single head; Max. Capacity: 3000kg; Coil inner-diameter: 508mm
  • Roll-Forming M/C:
    Steps: 11 Rows; Material: 45# steel; Voltage: 380V/50Hz. Line speed: 12m/min; Rolling chromium thickness: 0.05 mm
  • Cutting Mechanism
    It adopts hydraulic drive and automatic location to decide the dimension and cut the target products.
    Match equipment: One set of cutting tool, one hydraulic tank, one cutter machine. Stop cut, Post cut cutting to length tolerance: ± 2mm; Cutting tool material: GCr12 with quenched treatment 60-62° C
  • Hydraulic System
    It is controlled by the gear wheel oil pump.
    After filling the hydraulic oil into the hydraulic oil tank, the pump drives the cutter machine to begin the cutting job.
  • Computer control cabinet:
    It adopts Taida PLC to control.
    The target piece length is adjustable and digit of it can be adjusted Computed mode has two modes: Automatic and manual one.
  • Counter:
    One counter gauges length, pulses, and decides length

TECHNICAL PARAMETERS

Specifications of Gutter Roll Forming Machine

Seamless Gutter Machine

Item

Offered specification

Main forming Machine

5K,6K,7K, HALFROUND 3”/4”/5”/6”

(Each machine does one size and configuration)

Material width

Depend on profile

Rolling Speed

0-10m/min (not include cutting time)

Material Thickness

0.3-0.8mm G250mpa

Drive System

•Urethane top and bottom drive rollers
for smooth even, non-twisting drive

Un Coiler

3 ton manual de-coiler (Built in the machine)

Roller Stations

11 stations

Roller Material

45# forge steel, coated with chrome,
covered with rubber

Shaft Material and DIA

¢50mm, material is 45# forged steel

Main Motor Power

3.0kw

Cutoff Mechanism(alternative)

•Hand operated shear with built-in

•crimper or Cutoff saw

Tolerance

±1.5mm/3M

Electric Source

220V/380V, 50HZ,3 phase


Also can satisfy customer's require

Way Of Drive

1 inch single chain
